Description

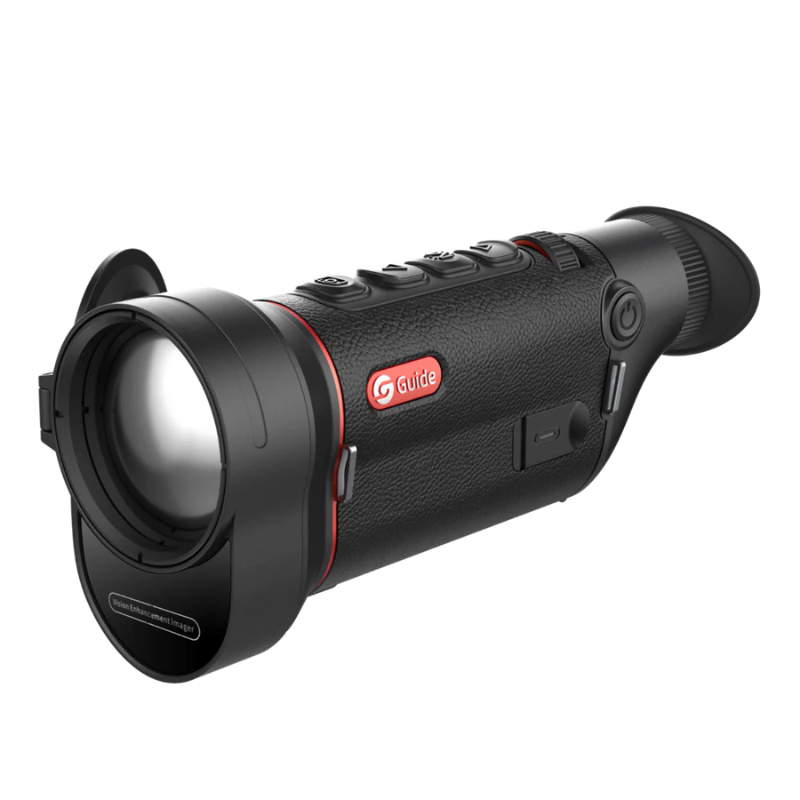

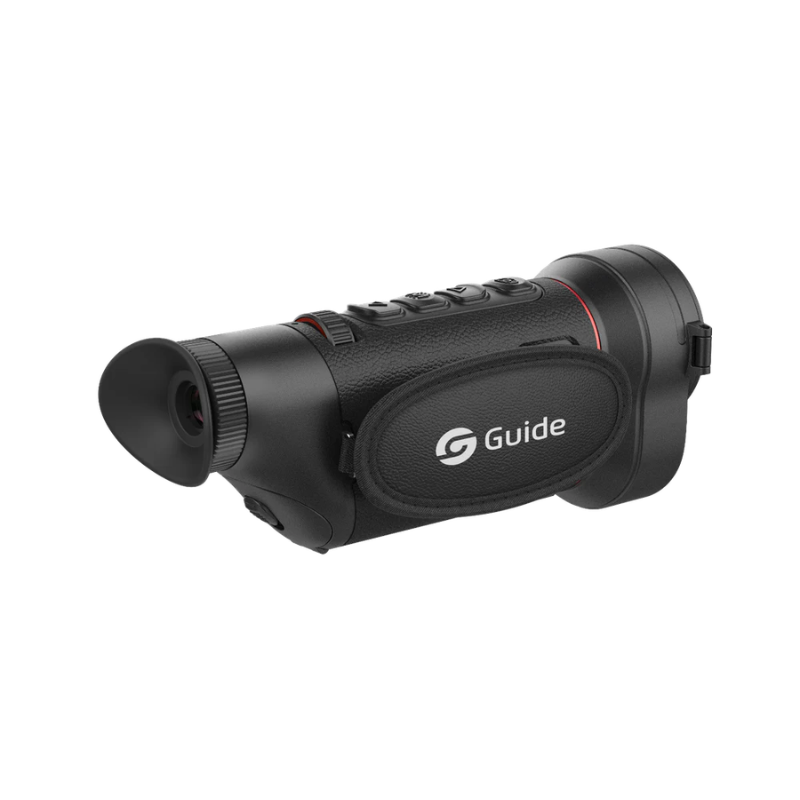

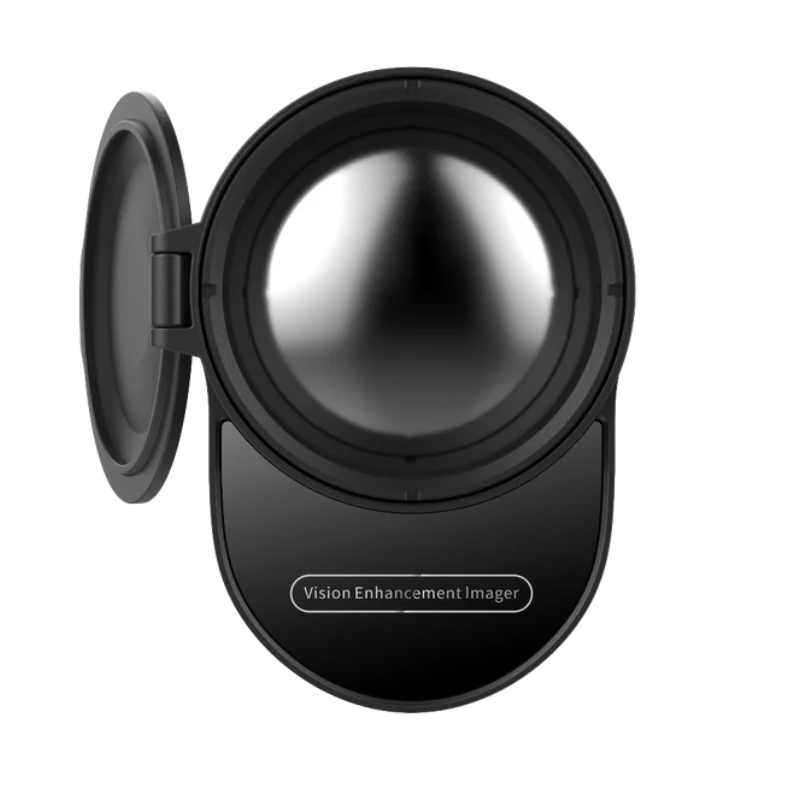

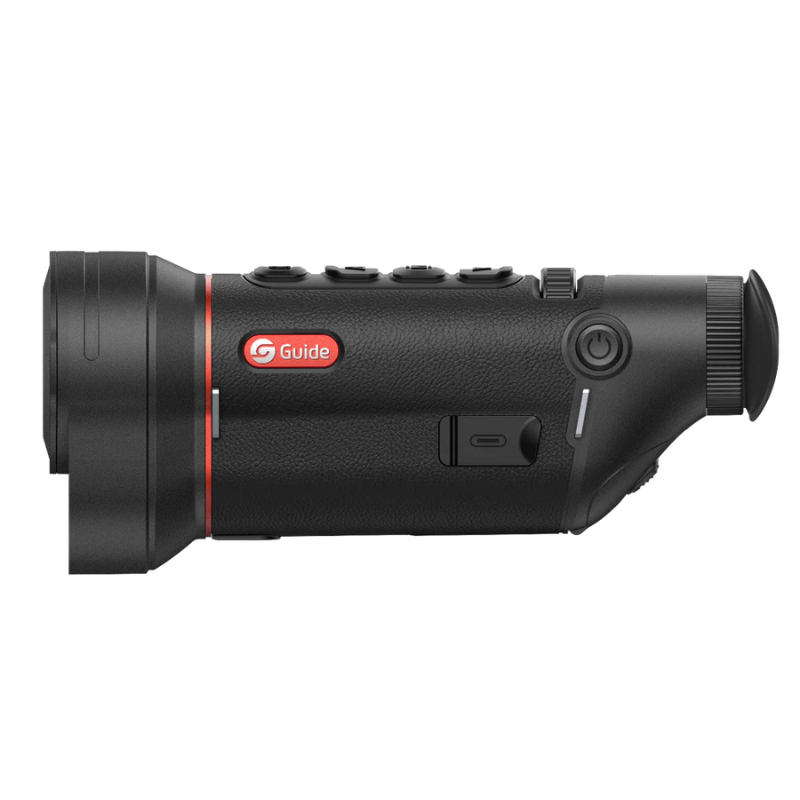

The TD Gen 3 Series Handheld Thermal Imaging Monocular is our latest compact night vision device. Equipped with a 640 x512 infrared detector and a 50mm lens, it delivers a powerful detection range of up to 2800 yard and a laser rangefinder at 1090 yard.

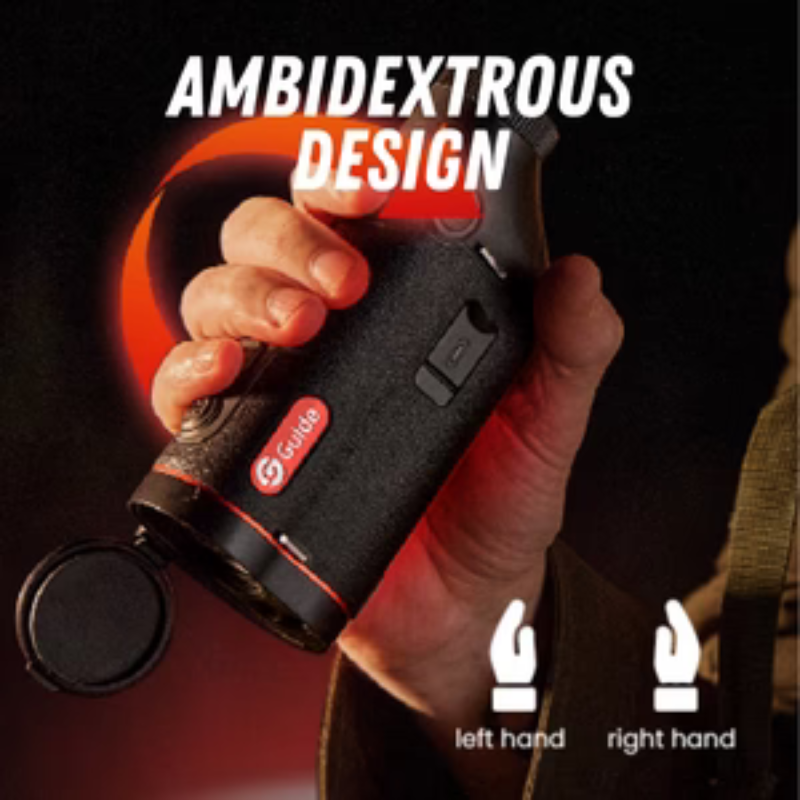

Perfect for all users, its ambidextrous design is ergonomic and enable one-handed operation. Up to 10 hours of runtime with a single 18650 battery, you can trust its performance for a night long hunt.

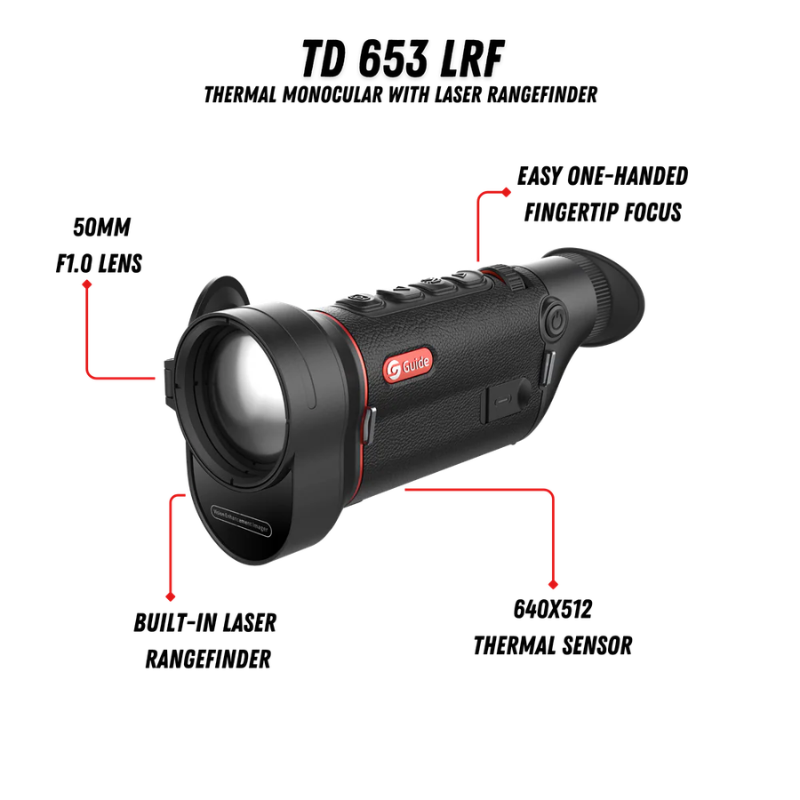

Meet the all-new TD Gen3 Series — engineered for hunters who demand precision, power, and performance in the palm of their hand.

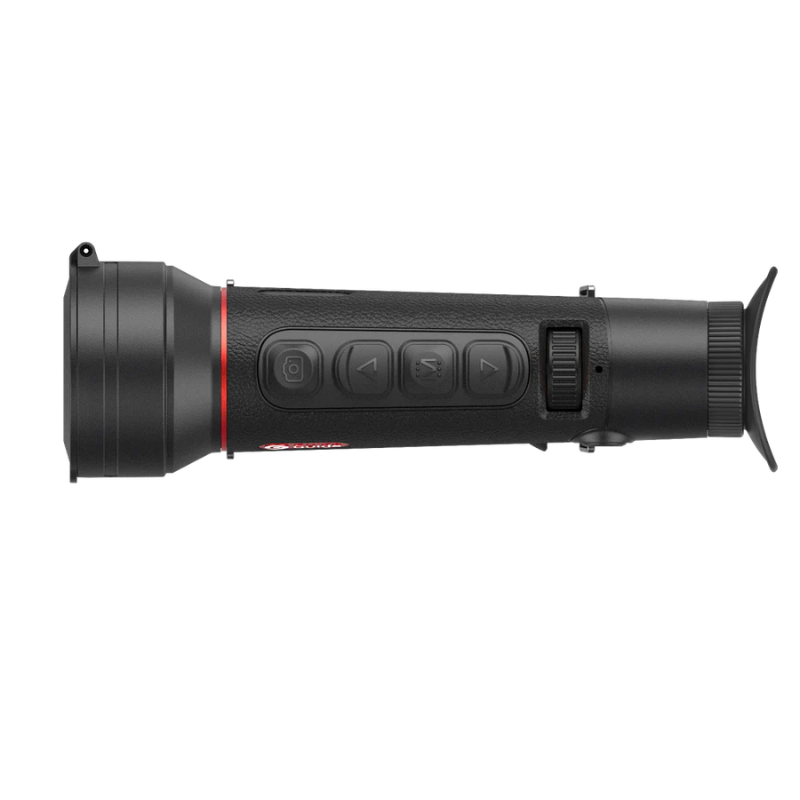

🔍 With Fingertip Focus, experience smooth one-handed control through a smartly placed focusing roller. The 12μm thermal sensor with NETD ≤20mK delivers razor-sharp thermal images, even in the harshest conditions.
🛠️ Ergonomic design, 10-hour battery life, IP67 waterproofing, and dual-band Wi-Fi — this monocular is your reliable partner for day-long outdoor exploration and real-time sharing.
📸 Capture every moment with built-in 32GB storage for photos, videos, and even audio recordings.
SPECIFICATION
| Sensor |
| Type |
Uncooled VOx Infrared Detector, 8 to 14μm |
| Resolution |
640×512@12μm |
| NETD |
20mK |
| Frame rate |
50Hz |
| Lens |
| Objective lens |
50mm, F1.0 |
| Field of view |
8.8°×6.6° |
| FOV m@100m |
15×12 |
| Magnification |
2.6x~20.8x |
| Detection range |
2600m/2800yd |
| Focus |
Manual |
| Display |
| Display type |
0.36'' AMOLED 1280×960 |
| Color palettes |
White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece |
Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x |
| Hardware |
| Laser rangefinder |
1000m/1090yd |
| WIFI |
2.4G, 5G |
| Interface |
USB-C |
| Others |
Microphone, Bluetooth |
| System |
| Recording function |
Photo/Video (Audio recording included) |
| Memory capacity |
32GB |
| Power |
| Battery type |
Single, Replaceable 18650 Battery |
| Operating time |
10 hours |
| Environmental |
| Operating temp. |
-20°C to 50°C / -4°F to +122°F |
| Encapsulation |
IP67 |
| Physical |
| Weight (g/oz) |
472/16.65 |
| Size (mm/in) |
189.5×67.5×88/7.46×2.66×3.46 |
| Standard |

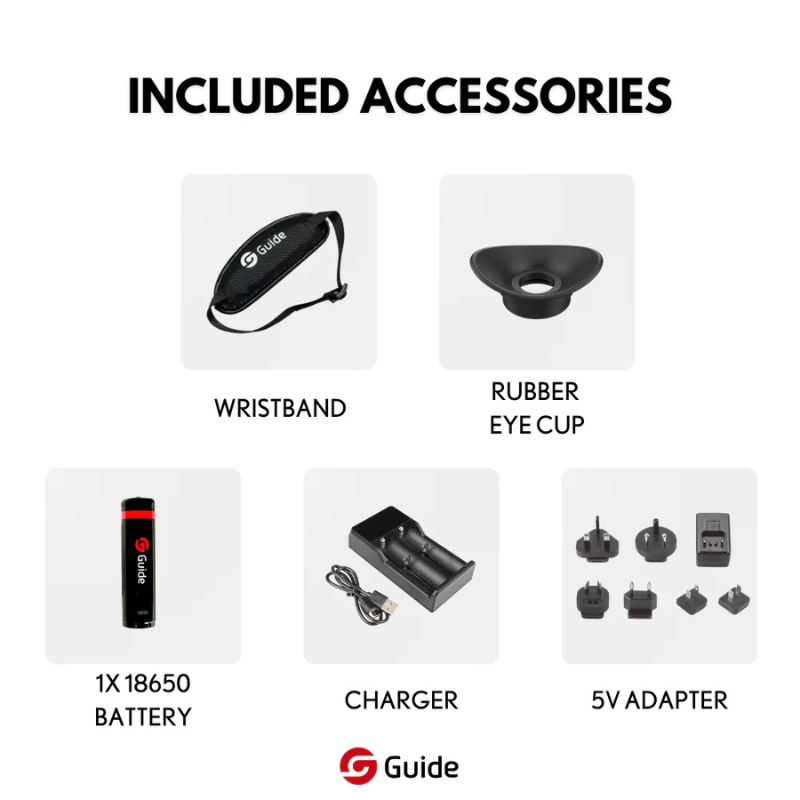

Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
| Optional |
Bluetooth Remote Control, 18650 Battery |
