GUIDE USA | TD633 LRF Thermal Monocular 2X 640x512 35mm

GUIDE USA | TD633 LRF Thermal Monocular 2X 640x512 35mm

Regular price
Price: $1,999.00
Regular price
List Price: $2,299.00
Sale price
Price: $1,999.00
You Save: $300.00 (13%)
10% off and Free Shipping | Coupon Code: ONEFIVE%10 | Ends:
Description

The TD Gen 3 Series Handheld Thermal Imaging Monocular is our latest compact night vision device. Equiped with a 640 x512 infrared detector and a 35mm lens, it delivers a powerful detection range of up to 1950 yard and a laser rangefinder at 1090 yard.

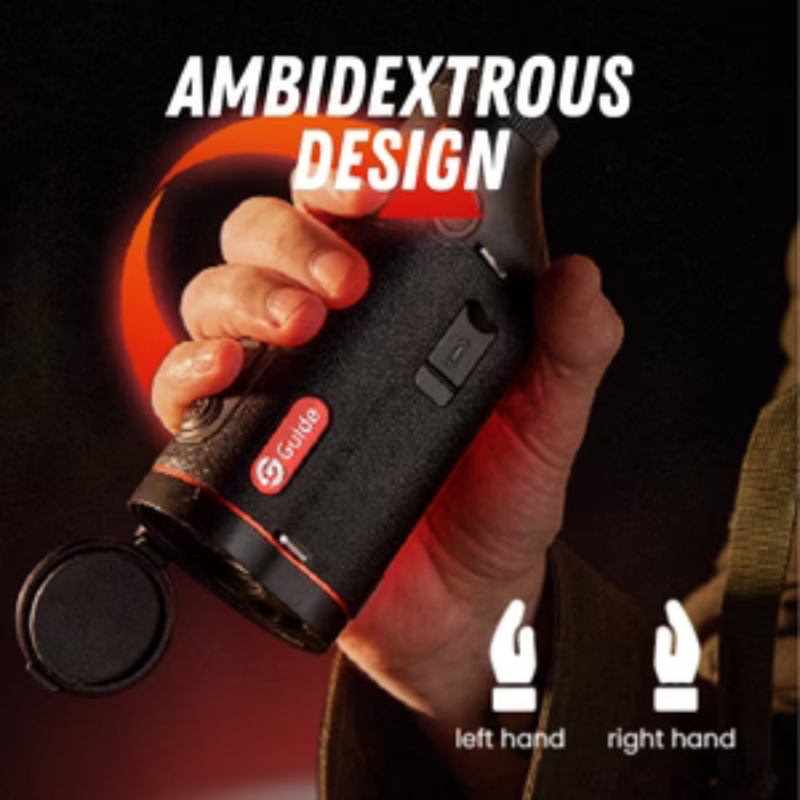

Perfect for all users, its ambidextrous design is ergonomic and enable one-handed operation. Up to 10 hours of runtime with a single 18650 battery, you can trust its performance for a night long hunt.

Meet the all-new TD Gen3 Series — engineered for hunters who demand precision, power, and performance in the palm of their hand.

🔍 With Fingertip Focus, experience smooth one-handed control through a smartly placed focusing roller. The 12μm thermal sensor with NETD ≤20mK delivers razor-sharp thermal images, even in the harshest conditions.

🛠️ Ergonomic design, 10-hour battery life, IP67 waterproofing, and dual-band Wi-Fi — this monocular is your reliable partner for day-long outdoor exploration and real-time sharing.

📸 Capture every moment with built-in 32GB storage for photos, videos, and even audio recordings.

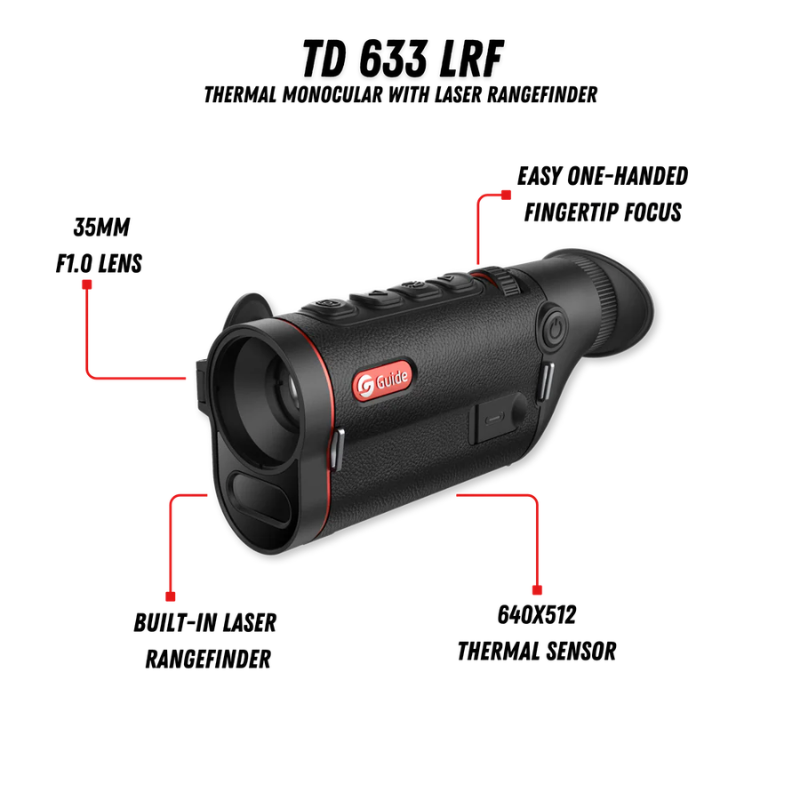

NEW TD GEN 3
  • 640×512@12μm, 20mK Detector
  • One-handed Easy fingertip focus
  • 1090yd Laser Rangefinder
  • 10 Hours Battery
  • 10-Year Warranty
SPECIFICATION
Sensor
Type Uncooled VOx Infrared Detector, 8 to 14μm
Resolution 640×512@12μm
NETD 20mK
Frame rate 50Hz
Lens
Objective lens 35mm F1.0
Field of view 12.5°×10°
FOV m@100m 22×17
Magnification 2.0x~16x
Detection range 1800m/1950yd
Focus Manual
Digital Zoom 8x
Display
Display type 0.36'' AMOLED 1280×960
Color palettes White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
Eyepiece Eye relief: 20mm; Diopter: -6 to +6; Zoom: 13.8x
Hardware
Laser rangefinder 1000m/1090yd
WIFI 2.4G, 5G
Interface USB-C
Others Microphone, Bluetooth
System
Recording function Photo/Video (Audio recording included)
Memory capacity 32GB
Power
Battery type Single, Replaceable 18650 Battery
Operating time 10 hours
Environmental
Operating temp. -20°C to 50°C / -4°F to +122°F
Encapsulation IP67
Physical
Weight (g/oz) 376/13.26
Size (mm/in) 159×54×74/6.26×2.13×2.91

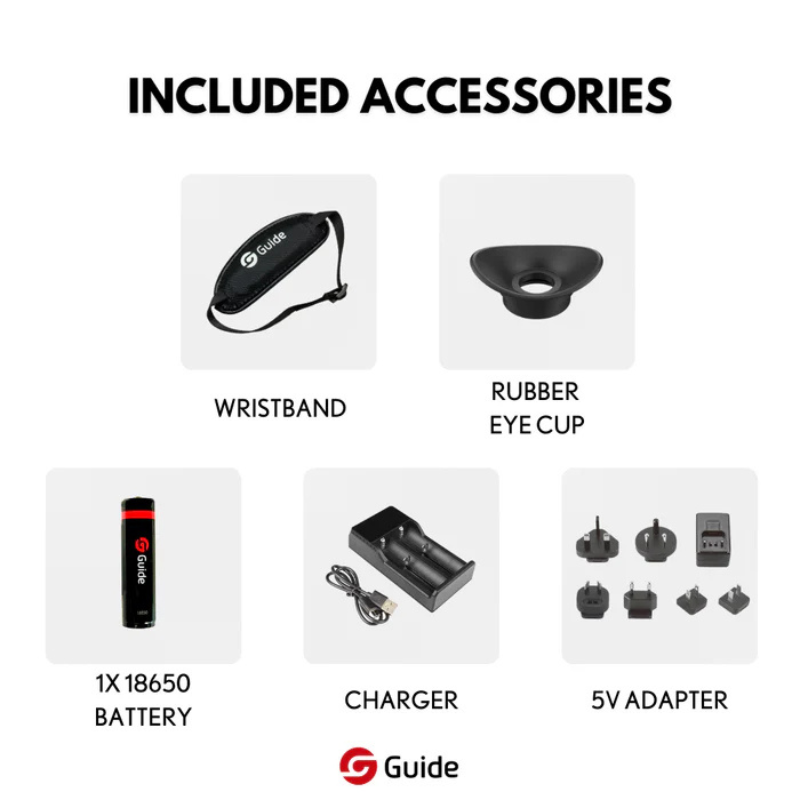

Standard Device, Dust-Free Cloth, Hand Strap, Eye Mask, Battery Charger, 18650 Battery ×1, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card
Optional Bluetooth Remote Control, 18650 Battery
Product Features
Sensor Resolution / Sensor Pixel Size: 640x512 @12μm
NETD Thermal Sensitivity: 20mK
Sensor Frame rate: 50Hz
Objective Lens: 35mm, F1.0
Field Of View: 12.5°×10°
Magnification: 2x~16x
Detection Range: 1950yd
Battery Life: 10 hours
General
Objective Lens
35mm
50mm
10mm
Base Magnification
2x
2.6x
1.2x
Sensor Resolution
640x512
640x512
256x192
Detection Range
1950 yd
2800 yd
550 yd
Laser Rangefinder
Yes
Yes
Digital Zoom
8x
8x
4x
Display Type
0.36'' AMOLED 1280×960
0.36'' AMOLED 1280×960
0.32'' AMOLED 800×600
Weight
13.2 Oz
16.6 Oz
